Products Description

Pellet die is the very heart of pelleting process, giving the final product the required shape, structure and hardness.

JIUHE MACHINERY can customize all shapes of pellet die for all pellet mill brands worldwide, inner diameters ranging from 200mm to 1500mm, and hole diameters from 1.0-30mm, using only high-quality raw material and most-advanced equipment.

Product Parameters

Remark: Opening rate of pellet die depends on the thickness and application finally.

lf the die is not thick enough, opening rate shall be decreased appropriately to avoid crack.

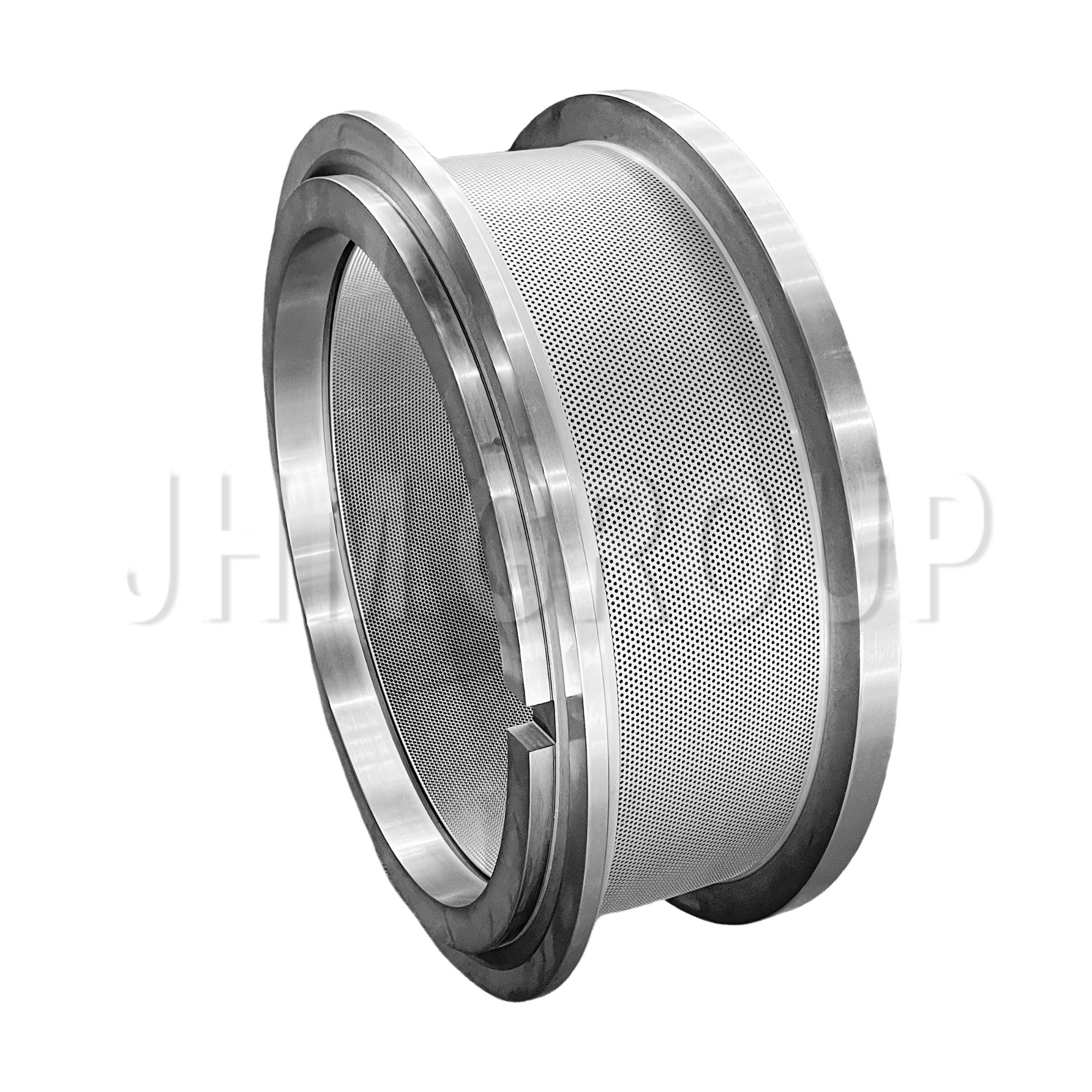

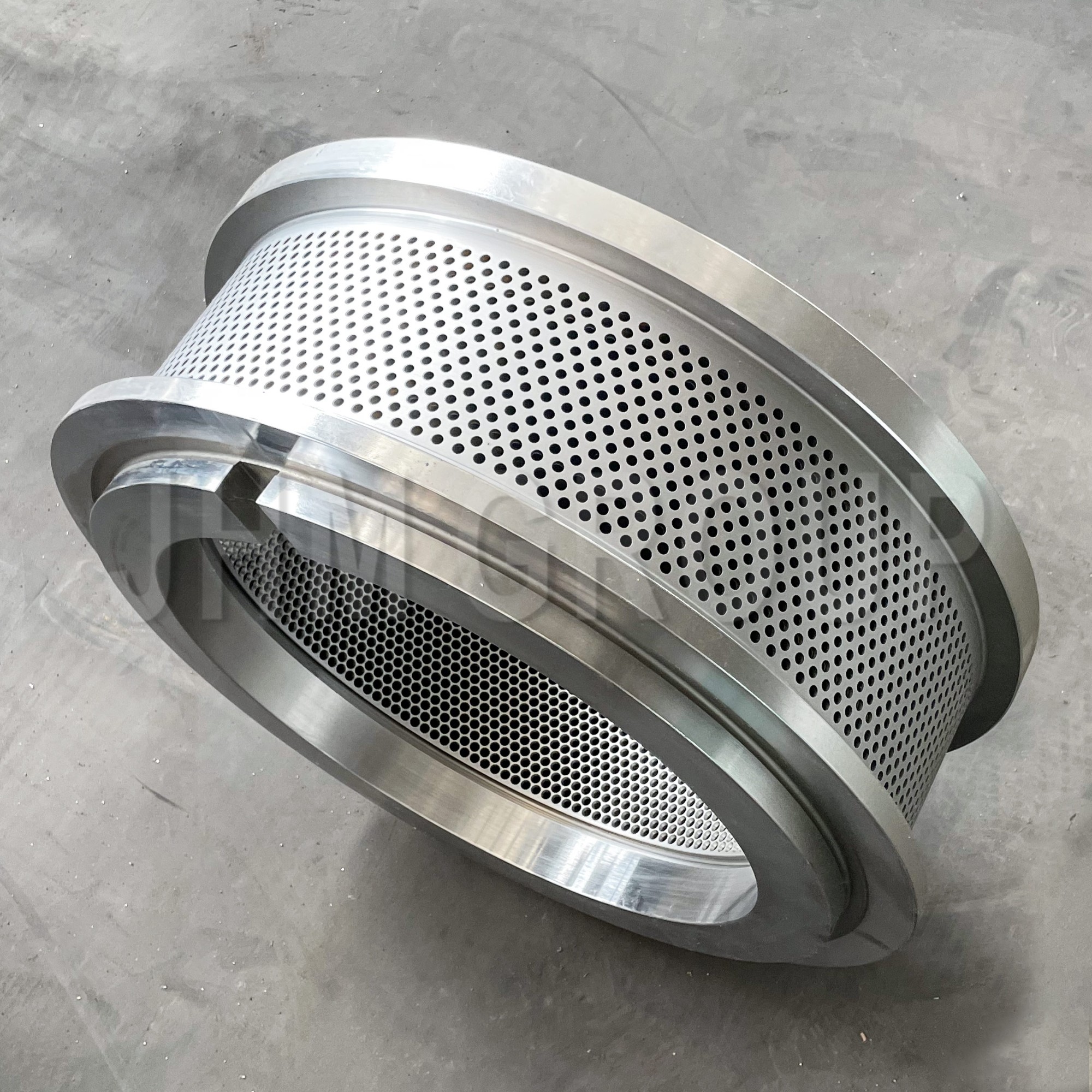

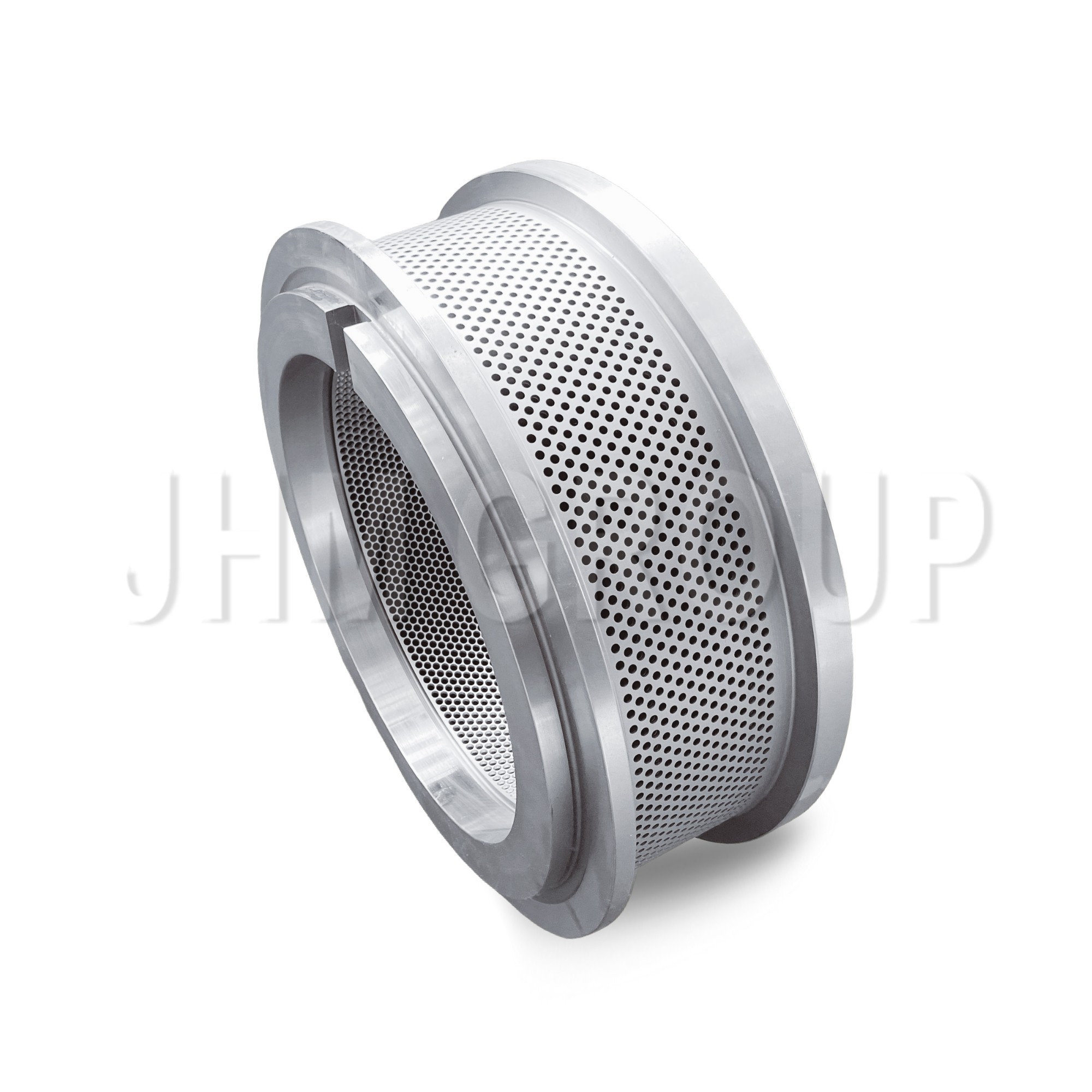

Ring die for Livestock feed production. Aperture compression ratio can be customized.

Product Features

·Material: X46Cr13

·Normal Models Available or Customer Offers the Drawing

·Price as per the Model and Details

·JIUHE Machinery can customize all kinds of poultry feed pellet ring die with different hole size, based on customers' demand, or detailed drawing.

·The hardness for 46Cr13 ring die is 52-56, and difference between each part is less than 2.

·After heating(under 1050℃) and refrigeration and quenching, the pellet ring die comes into some deformation infinitesimally, 0.3-1mm, and after being processed by grinder, the deformation can decrease to 0.05-0.15mm.

·Service Time: 600-1000Hours

Product Features

Livestock Feed Ring Die can process high-adhesive raw materials such as corn and soybean meal, and can also process crude fiber materials such as rice husks and straw (process parameters need to be adjusted).

By adjusting the ring die aperture, compression ratio and moisture content, the pellet specifications of different animal feeds such as pigs, cattle and livestock can be adapted.

Our own vacuum tempering furnace includes the latest technology. Livestock feed ring dies tempering quality is continuously sensed on-line. This allows for on-line tempering adjustments as required resulting in superior quality Ring Dies and optimum operational life for specific Die hole configurations. The furnace is suitable for dies up to 1.5 mm.

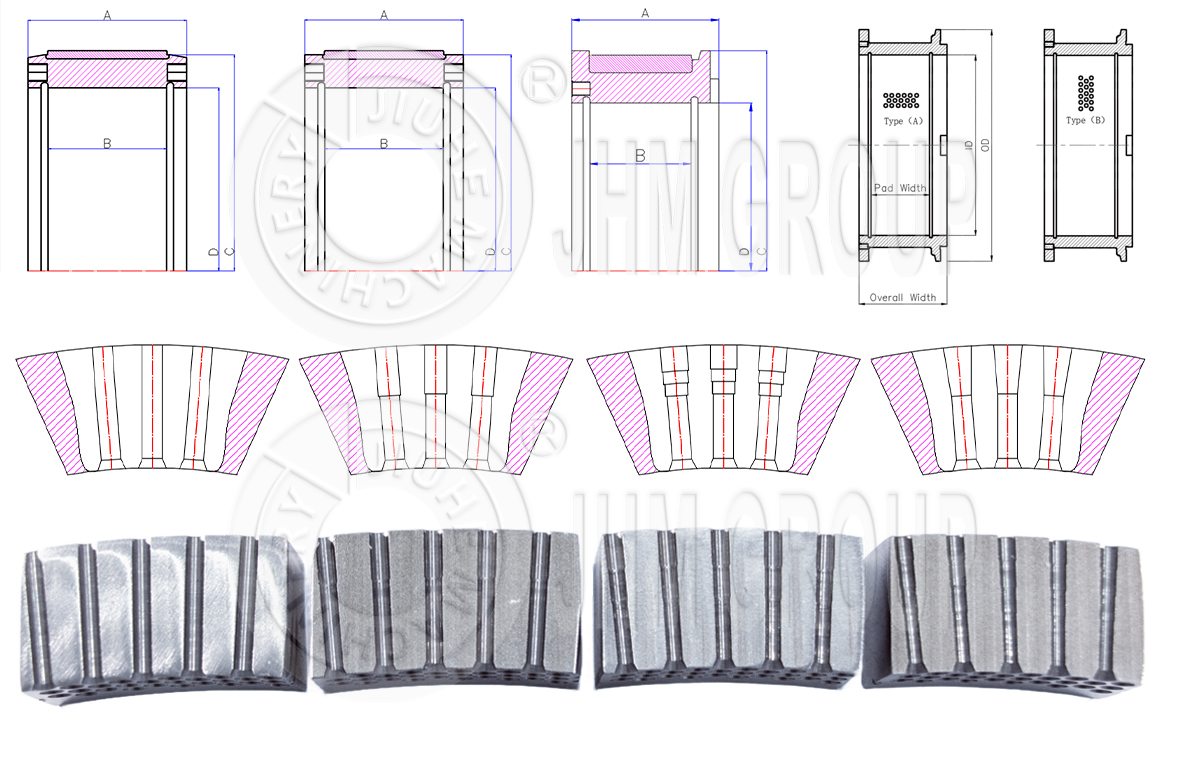

Pellet Die Type

Production Process

Metal Forming

Lathed

Ultrasonic testing

hole drilling

Automatic chamfering

Vacuum quench

Inspection and Measurement

Our expert team is available to guide you by selecting the right die. In addition, we have service agency in different countries, such as Russia, Iran, Egypt, Bangladesh, India, etc,which can help solve all kinds of problems you face in time.Our engineer will also visit our client annually.

Production Application

Application Scenarios: Fattening pig, breeding pig, and piglet feed pelleting; Federal cattle, beef cattle, sheep, and goat feed processing; Automated production lines for livestock enterprises, pellet workshops for feed plants.

Livestock feed pellet die offers wide adaptability and customization capabilities.

It's particularly suitable for livestock feed production applications such as cattle, sheep, and pigs, which require high pellet hardness, hygiene standards, and high production capacity.

For more cases and parameters, please contact us.
