Products Description

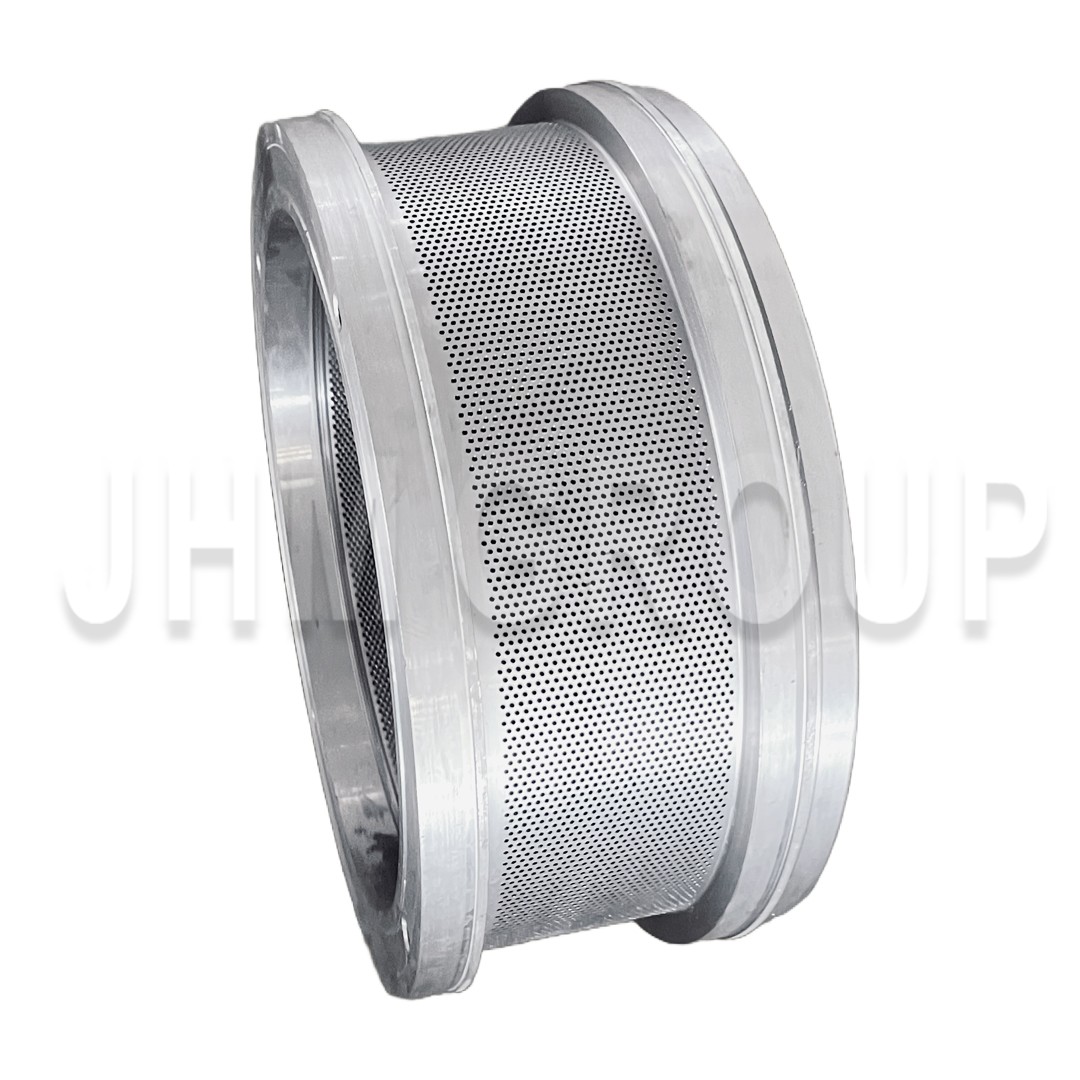

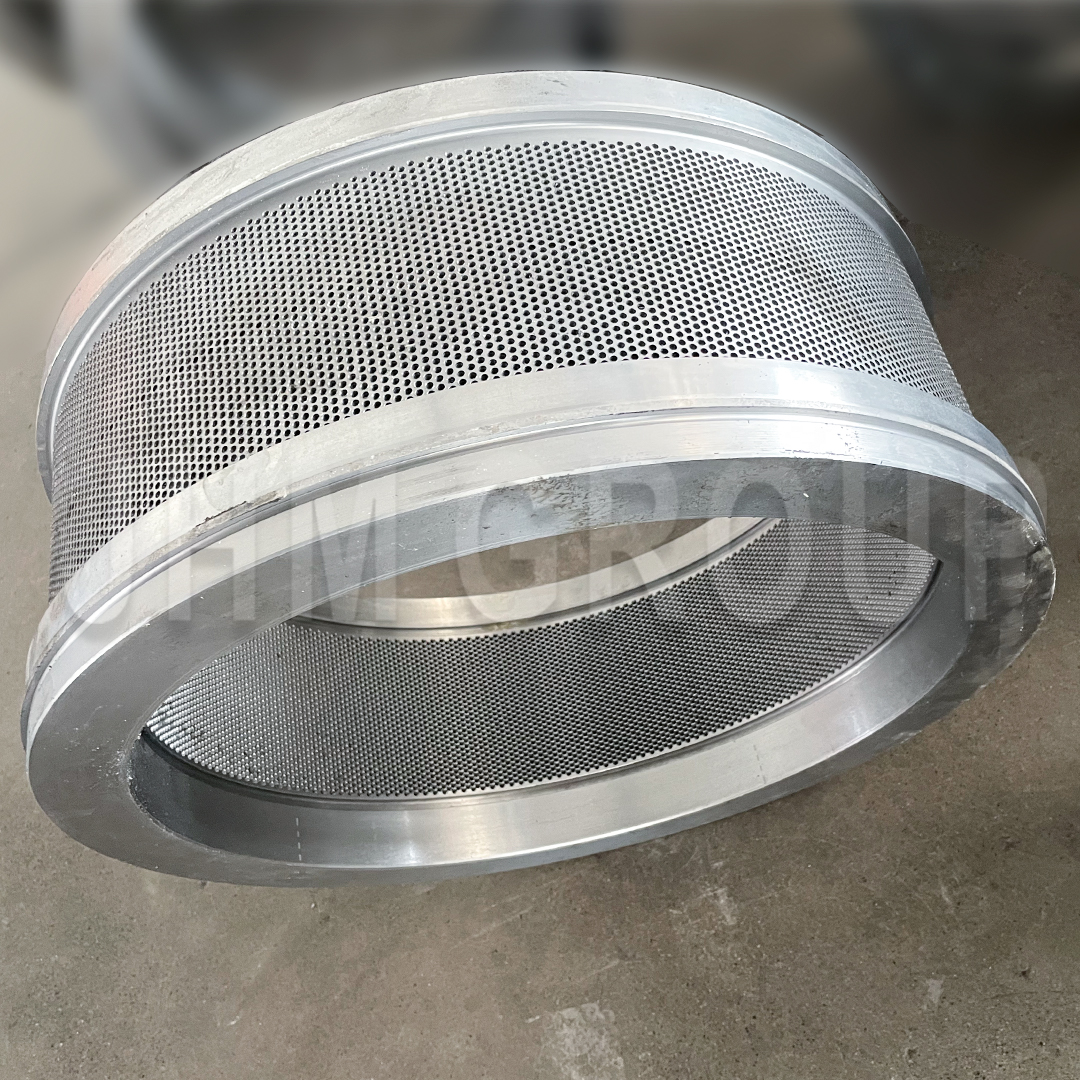

Bentonite cat litter pellet die is the core component of the cat litter pelletizing production line and is widely used for pressing and molding Bentonite cat litter. The Bentonite cat litter pellet die is made of high wear-resistant alloy steel or stainless steel and undergoes precision deep hole and vacuum heat treatment, which has excellent corrosion resistance, discharge performance and particle stability.
Product Parameters
|
Material |
Hardness |
Hole Diameter |
Hole Surface Roughness |
Hole Size Error |
|
X46Cr13 |
52-55 |
1.0-30mm |
0.4-0.8μm |
±0.04mm |
|
20CrMnTi |
58-62 |
3.0-30mm |
1.6-3.2μm |
±0.04mm |
Remark: Opening rate of pellet die depends on the thickness and application finally.lf the die is not thick enough, opening rate shall be decreased appropriately to avoid crack.
