Products Description

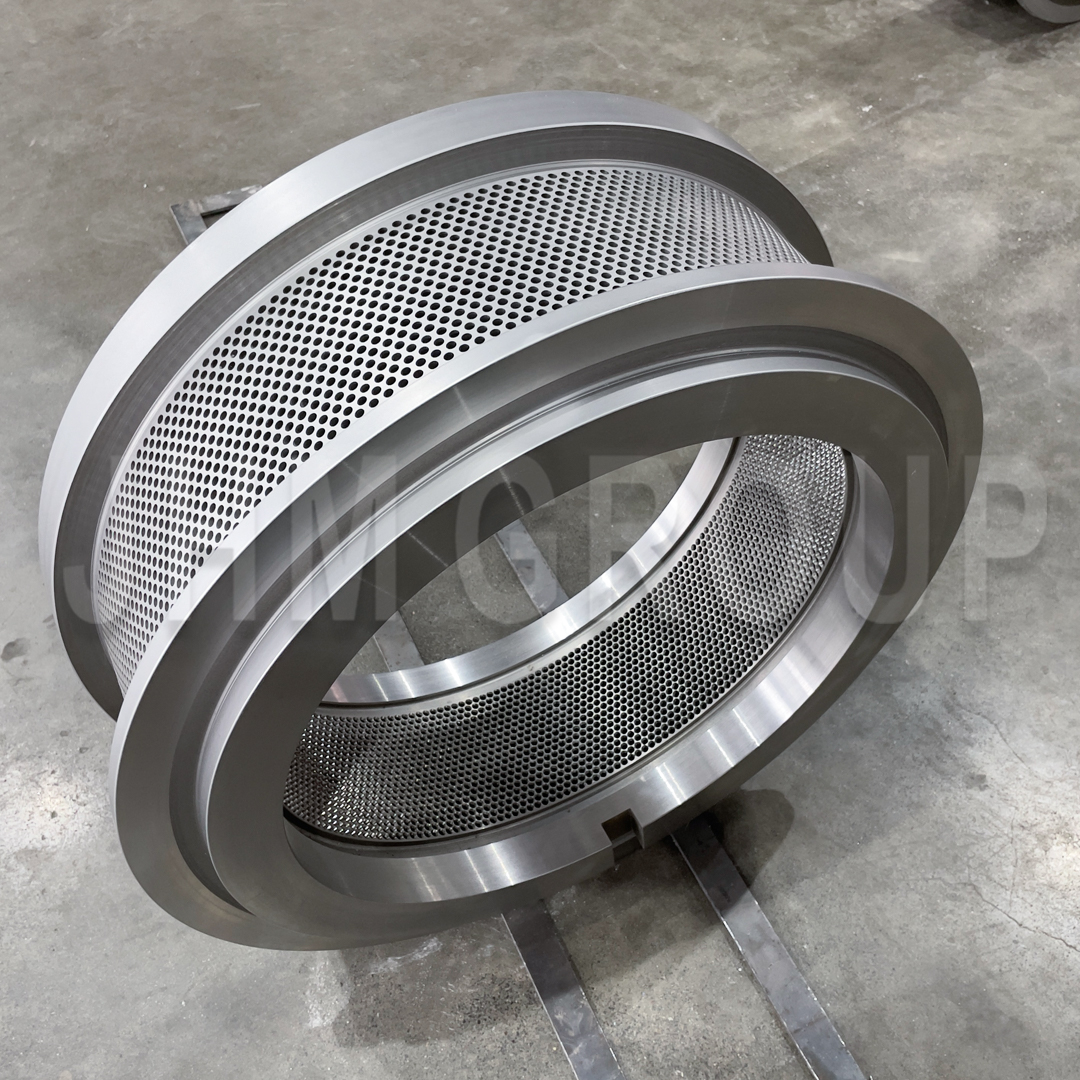

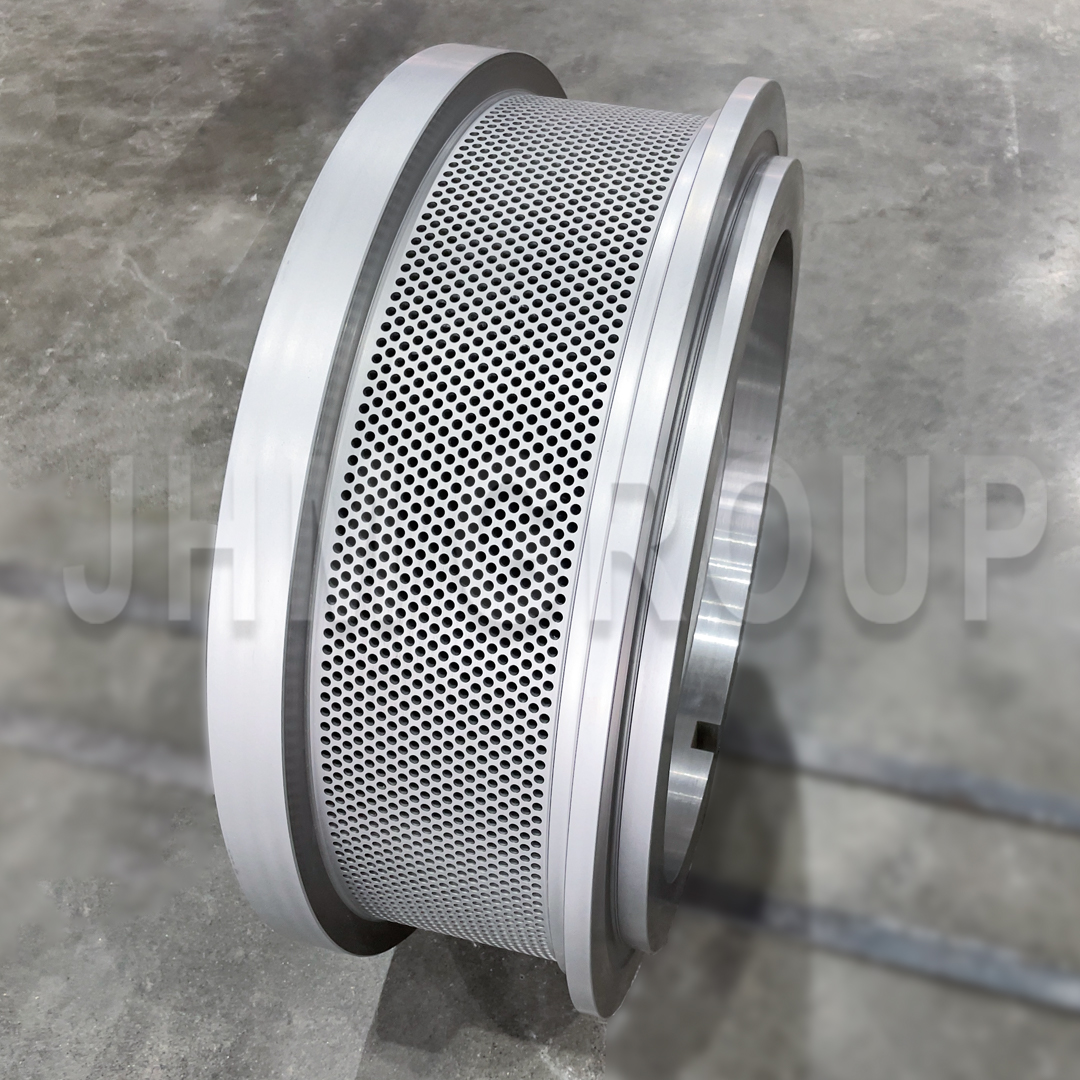

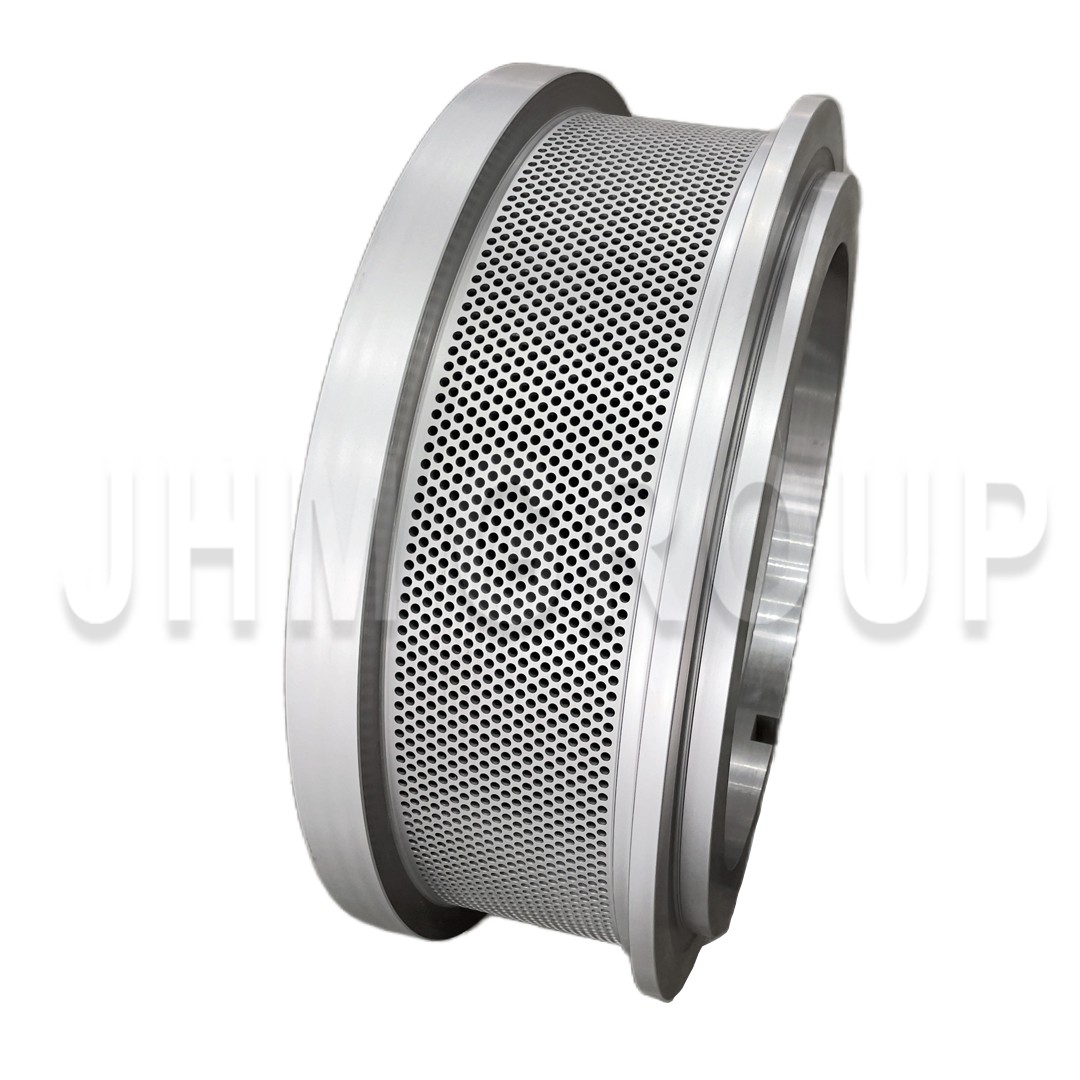

Organic fertilizer pellet ring die is a key component in the organic fertilizer pelletizing machine, which is specially used for high-pressure molding of raw materials such as livestock and poultry manure and organic residues.
Product Parameters
|
Material |
Hardness |
Hole Diameter |
Hole Surface Roughness |
Hole Size Error |
|
X46Cr13 |
52-55 |
1.0-30mm |
0.4-0.8μm |
±0.04mm |
|
20CrMnTi |
58-62 |
3.0-30mm |
1.6-3.2μm |
±0.04mm |
Remark: Opening rate of pellet die depends on the thickness and application finally.lf the die is not thick enough, opening rate shall be decreased appropriately to avoid crack.
